Description
Overview

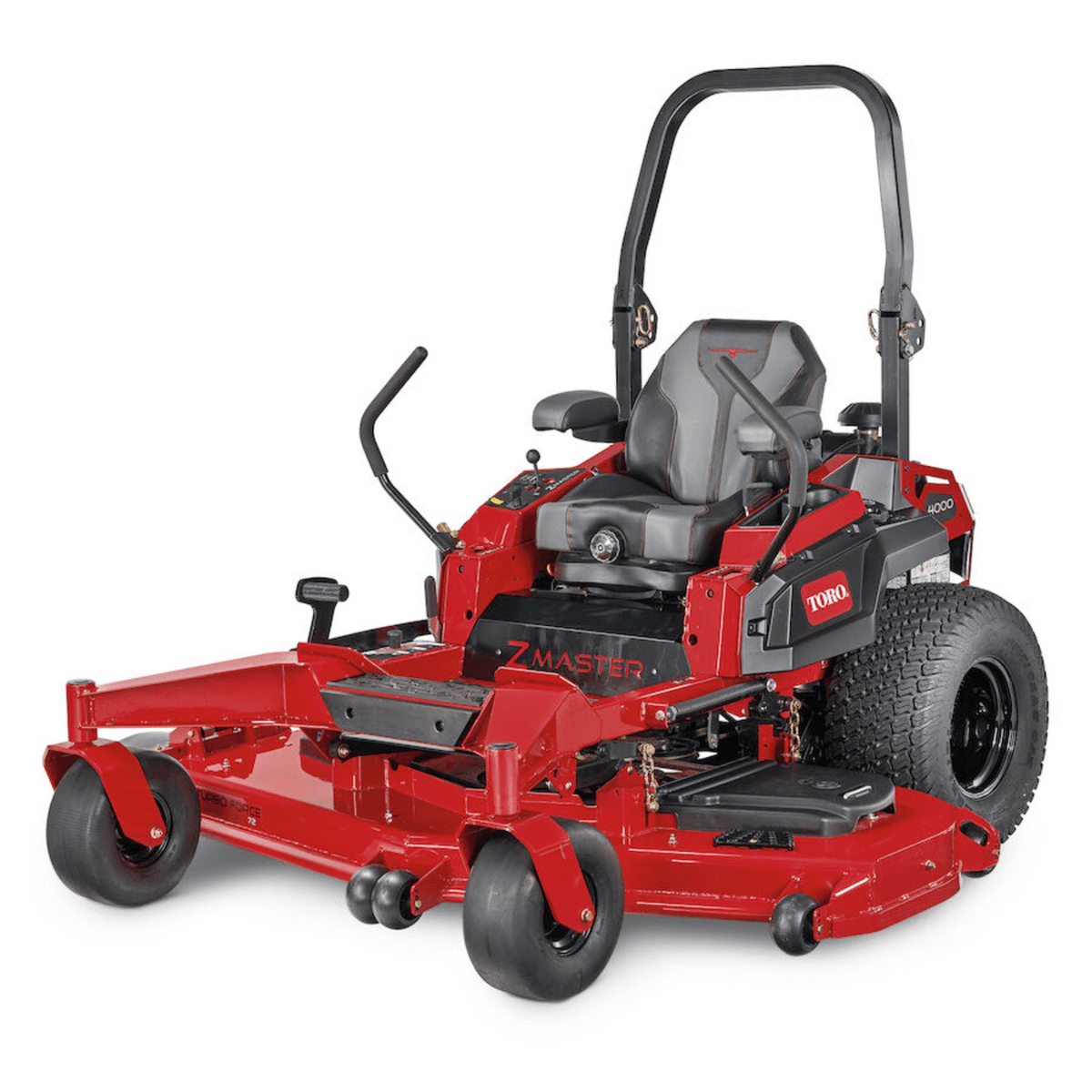

Unleash power, comfort, and confidence like never before with the 60-inch Z-Master 4000 HDX with MyRIDE Suspension System. Dominate any job with the relentless 35 HP* Kawasaki FX1000 engine and legendary Turbo Force cutting deck, reinforced with heavy-duty commercial-grade hydros, and supported by the 26-inch Voodoo Trac tires. Plus, with the hour meter, USB ports, phone holder, and cup holder, you'll have everything you need to conquer the day in comfort.
Features
MyRIDE Suspension System
Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
26 in Voodoo Trac Drive Tires
Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 26 in Voodoo Trac Drive Tires.
LED Headlights
Powerful illumination for after-hours work.
Phone and Cup Holder
Keep your phone and drink at arm's reach with built-in phone and cup holders.
Horizon360 Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.
For more information .
USB Ports
USB ports to help you stay charged on the job.
Specifications
Blade Design
0.25 in. / 0.635 cm thick heat-treated steel
Blade Tip Speed
18,500 ft/min / 5,638 m/min
Box Dimensions
91 in. x 70 in. x 52 in. / 231.1 cm x 177.8 cm x 131.1 cm
CARB Compliant
Not CARB Compliant
Caster Tires
15 in. x 6.5 in. - 6 in. (38.1 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Clutch
Electromagnetic
Comfort Platform
MyRIDE Suspension System
Deck Design
60 in (152 cm) 7-Gauge High-Strength Steel Turbo Force
Deck Size
60 in / 152 cm
Discharge Chute
Rubber
Drive Tires
Voodoo Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm)
Engine
35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson Canister-Style Air Cleaner
Engine Brand
Kawasaki
Engine Displacement (cc)
999 cc
Engine Horsepower
35 hp
Foot Operated Height of Cut
Standard
Forward Ground/Transport Speed
Up to 12.0 mph / 19.3 kph
Fuel Capacity
10 gal. / 37.8 L / 40 Qt.
Fuel Type
Gasoline
Height of Cut
1.5 - 5.5 in. / 3.8 - 14.0 cm in 0.25 in (0.6 cm) increments
Hour Meter
Standard
Product Type
Zero Turn Mowers
Roll-Over Protection System (ROPS)
Folding; Standard
Seat
Deluxe Seat with Armrests
Spindle Bearings
Maintenance-free
Spindle Housing
9 in / 22.9 cm Diameter Cast Aluminum
Start Type
Electric
Steering Controls
1.4 in (3.6 cm) Diameter Grips; Adjustable, Dampened
Transmission
ZT-4400 Integrated Pumps and Wheel Motors
Weight
1,317 lbs / 597.4 kg
Disclaimer
*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.
**See your retailer for warranty details.
Documents
Title
Documents
Z Master 4000 Brochure
PDF - Sellsheet-en-us
Warranty
5-Year / 1550 Hours
