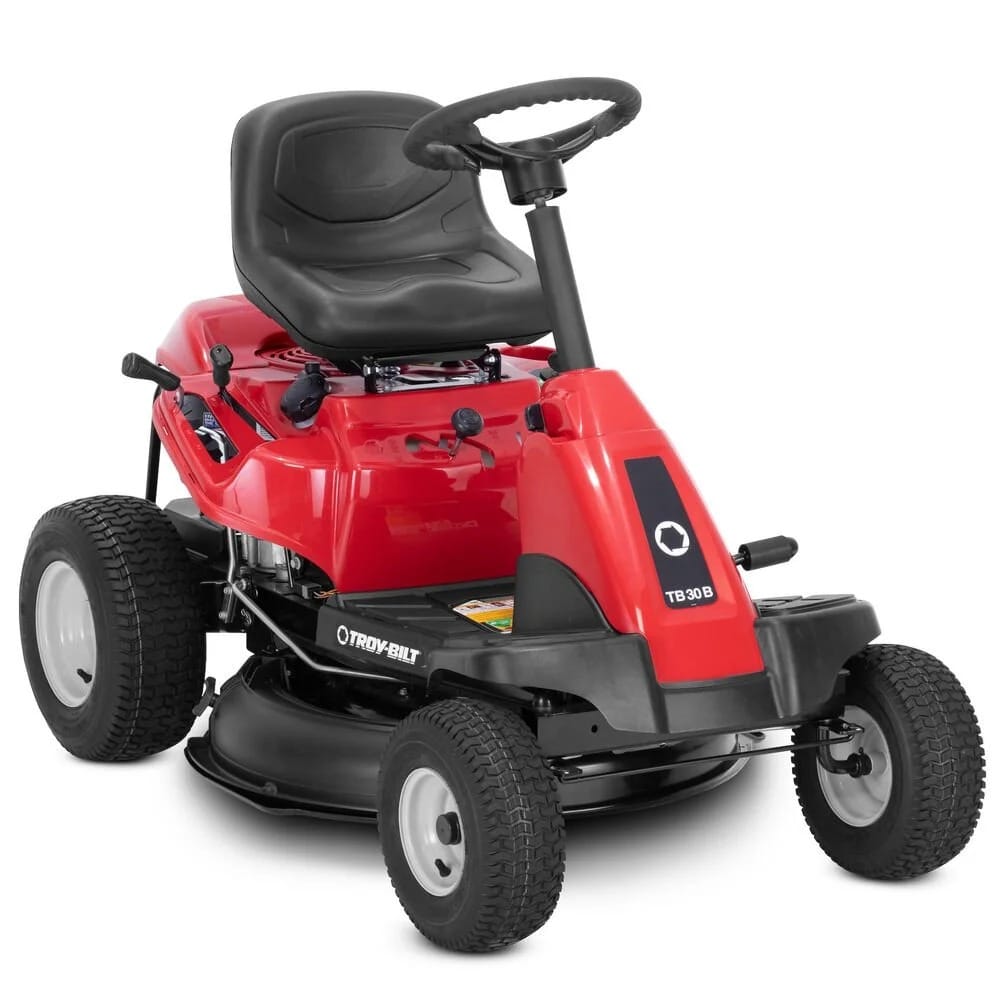

Save on storage space with the small riding mower design of the Troy-Bilt TB30B riding mower. Ideal for smaller or gated yards, this riding mower has a 30 in deck that will fit through most standard-size gates. Easily adjust your mowing speed with a 6-speed, Shift-on-the-Go transmission.
Documents and Guides
Assembly Instructions
10.5 HP*/344cc Briggs & Stratton engine designed for reliable starting

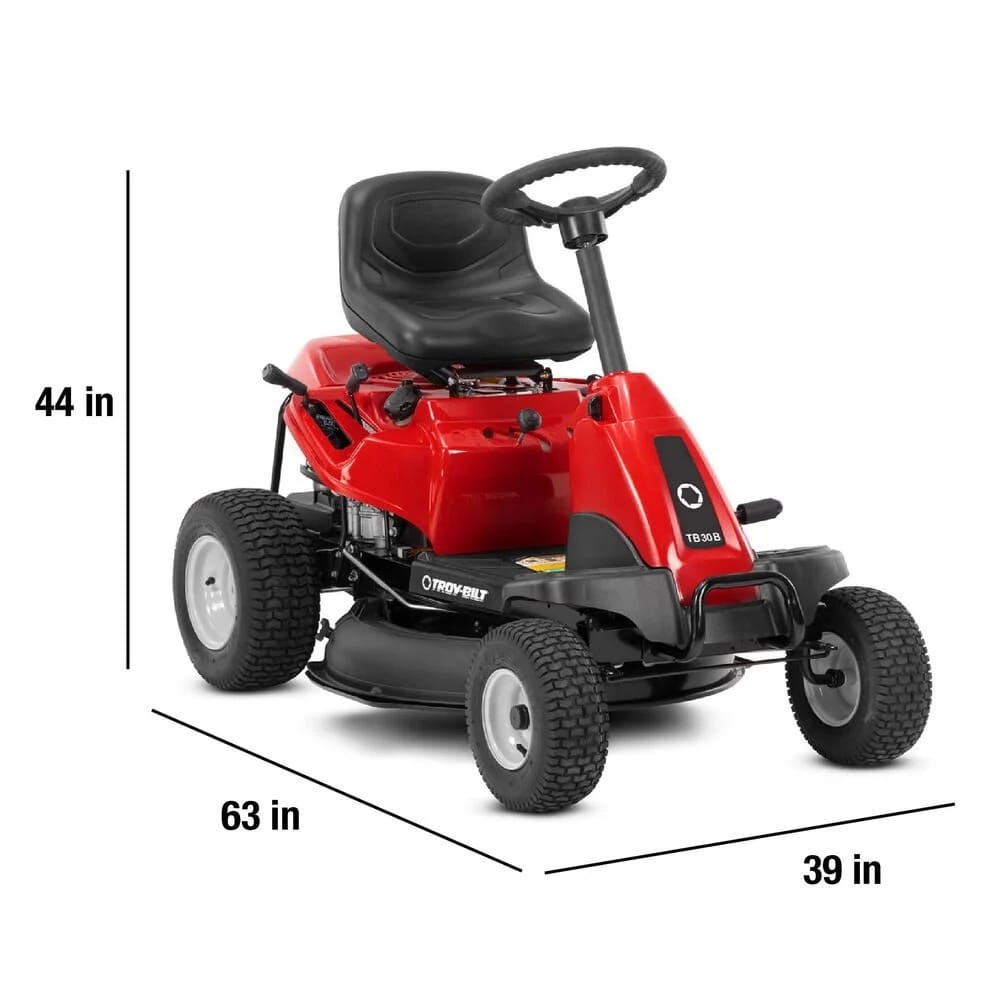

30 in side-discharge steel cutting deck is designed to fit through gates 36 in wide or larger and is an ideal choice for small or gated yards up to 1/2 acre.
6-speed Shift On The Go transmission has a dash panel control that is easy to see and adjust
Space-saving design makes the TB30B riding mower easy to store in garages and sheds
Help keep your lawn healthy and return nutrients into the soil by using the included mulch plug and help avoid thatch
Small Riding Mower
Specs & Maintenance
Engine
Engine BrandBriggs & Stratton
Engine ModelPower Built
Engine Model Number21R707-0152
Engine Displacement344cc
Engine Output10.5HP
Starter TypeElectric
Fuel Tank Capacity1.3 gal. US (4.92 L )
CylindersSingle
Engine StartIgnition Key
Engine Oil Capacity1.5 qt. US (1.42 L)
LubricationFully pressurized
Charging System3 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeChoke-a-matic
Air FilterDual element
Oil FilterNo
Fuel DeliveryCarburetor
Battery
Battery135 CCA
Battery TypeAGM (Absorbent Glass Mat)
Battery Voltage12V
Drive System
TransmissionTroy-Bilt
Forward Speed4.25 MPH / 6.7 km/h
Reverse Speed2 MPH / 3.2 km/h
Drive SystemCVT
Transmission Control6-Speed Hand Lever
Transmission HousingAluminum
Cutting Deck
Deck Cutting Width30 in
Deck WashNo
Deck Material14-gauge steel
Deck Engagement (PTO)Manual
Deck ConstructionStamped
Blade(s)1
Deck LiftHand lever
Cutting Height Range1.5 in - 4 in
Anti-ScalpingN/A
Deck Positions5
Chassis
FrameRobotically welded
Turning Radius18 in
BumperNo
Rear Tow HitchYes
Corrosion ProtectionYes
Front Pivot Bar14-gauge steel
Controls
Cruise ControlNo
BrakesDisc
Comfort
Seat TypeMid-back
ArmrestsNo
Seat AdjustmentKnob
Floor MatsIntergral
Wheels
Bearing TypePoly Bushing
Rear Tires16 in x 6.5 in-8 in
Front Tires13 in x 5 in-6 in
Tire TreadTurf Saver
Additional Specifications
Mulch KitIncluded
Headlight(s)No
Cup HolderYes
Operator Presence SystemYes
Model Number13AC26JDA23
Warranty
Residential Warranty2-year limited residential
Frame Warranty2-year limited
Front Axle Warranty2-year limited
Deck Shell Warranty2-year limited
Commercial WarrantyNo
Disclaimers
SpecificationsSpecifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
